Sabtu, 04 Juni 2011

Rangkaian LED Berjalan

Rangkaian LED Berjalan

Komponen utama rangkaian ini adalah IC 4017 yang memiliki 10 keluaran (kaki 3, 2, 4, 7, 10, 1, 5, 6, 9, 11). LED akan menyala satu per satu (model dot). IC 4017 membutuhnya detak yang berasal dari rangkaian astabil.
Skema Rangkaian LED Berjalan
undefined
Kita dapat menyusun kesepuluh LED menjadi bentuk lingkaran, persegi, persegi panjang, atau bentuk hati dan lainnya sesuai keinginan kita.

Huruf LED

Huruf LED (seri 1)

LED dapat disusun menjadi sebuah huruf. Hubungan antar LED dapat dihubung secara seri ataupun paralel. Susunan LED yang ditampilkan pada gambar di bawah ini dihubung secara paralel.

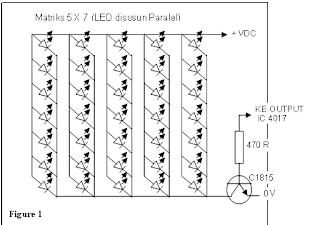

Skema Huruf LED (1 huruf)
Setiap huruf LED pada kaki katoda harus dihubungkan dengan kaki kolektor transistor C1815, sedang basis transistor dihubungkan ke resistor (470R). Kaki resistor yang lain dapat dihubungkan ke Output IC 4017 (kaki 3, 2, 4, 7, 10, 1, 5, 6, 9, 11).

Lay-Out Atas Huruf LED (4 huruf)

undefined
(Lay-out ini bukan ukuran sebenarnya)
